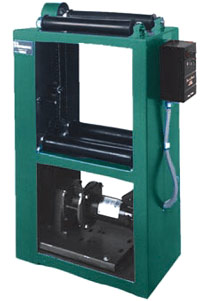

Two Tier Jar Mill
  1. Drive from 1 - 2 HP geared motor, 3 phase, TEFC, 4 pole Motor
  2. Motor drives a rubber covered roller with one idle roller
  3. It accommodate two one gallon jar ( 2X4.5 litres volume)
  4. The rollers are mounted on self aligned bearings which can be easily moved to accommodate different size jars
  5. Options: Variable speed , duration timers , flame proof motors for hazardous environments can be provided
  6. Roll guard covers, tachometer & timer provided for some models
  7. Machines have speed range of between 20 and 300 RPM.
  8. This model is two-jar capacity unit
  9. Overall Size Width 510 mm approx Length 1020 mm approx Height 490 mm
