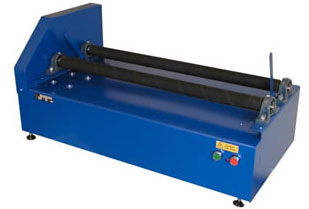

| Model JM-1 with
the following Specifications |
 |
- Drive from 0.5 - 1 HP geared motor, 3 phase, TEFC,
4 pole Motor
- Motor drives a rubber covered roller with one idle
roller
- It accommodate one gallon jar ( 4.5 litres volume)
- The rollers are mounted on self aligned bearings
which can be easily moved to accommodate different
size jars
- Options: Variable speed , duration timers , flame
proof motors for hazardous environments can be provided
- Roll guard covers, tachometer & timer provided
for some models
- Machines have speed range of between 20 and 300
RPM.
- This model is one-jar capacity unit.
- Overall Size Width 510 mm approx. Length 600 mm
approx. Height 540 mm approx. Weight approximately
50 kg.
|
| |
| |
|
| |
|
| |
|
|
©
